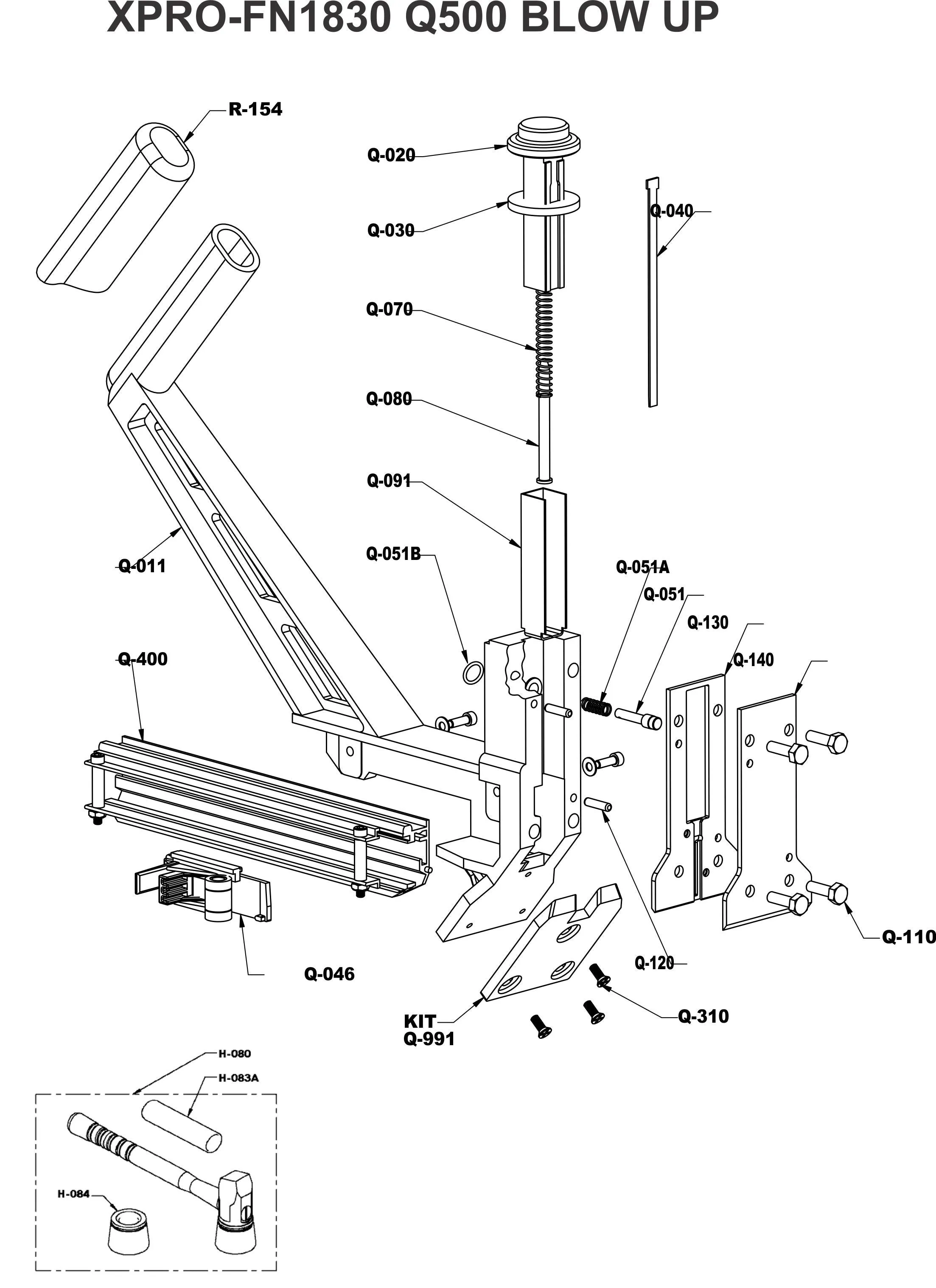

Blow Up
Spares
| TOOL NAME: | XPRO-FN1838 Q500 | REV.1ST APRIL 2022 | ||
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | Q-011 | BODY | ||
| 2 | Q-020 | PLUNGER | ||
| 3 | FMS | Q-030 | BLADE RETAINER | |
| 4 | FMS | Q-040 | DRIVING BLADE | |
| 5 | Q-046 | SPRING & CLIP | ||
| 6 | Q-051 | PIN | Q-951 | |
| 7 | Q-051A | SPRING & CLIP | Q-951 | |
| 8 | Q-051B | RING | Q-951 | |
| 9 | FMS | Q-070 | SPRING | |
| 10 | FMS | Q-080 | CLIP | |
| 11 | Q-091 | PLUNGER SPRING PIN | ||
| 12 | Q-110 | BOLTS | P-128 | |
| 13 | Q-120 | DOWEL PINS | ||
| 14 | Q-130 | GATE | ||
| 15 | Q-140 | FOOT | ||
| 16 | Q-154 | GRIP HANDLE | ||
| 17 | Q-310 | SCREWS | P-034 | |
| 18 | Q-400 | NAIL CHANNEL | ||
| 19 | Q-991 | PLASTIC BASE KIT | ||
| 20 | FMS | Q-951 | PARTS KIT |

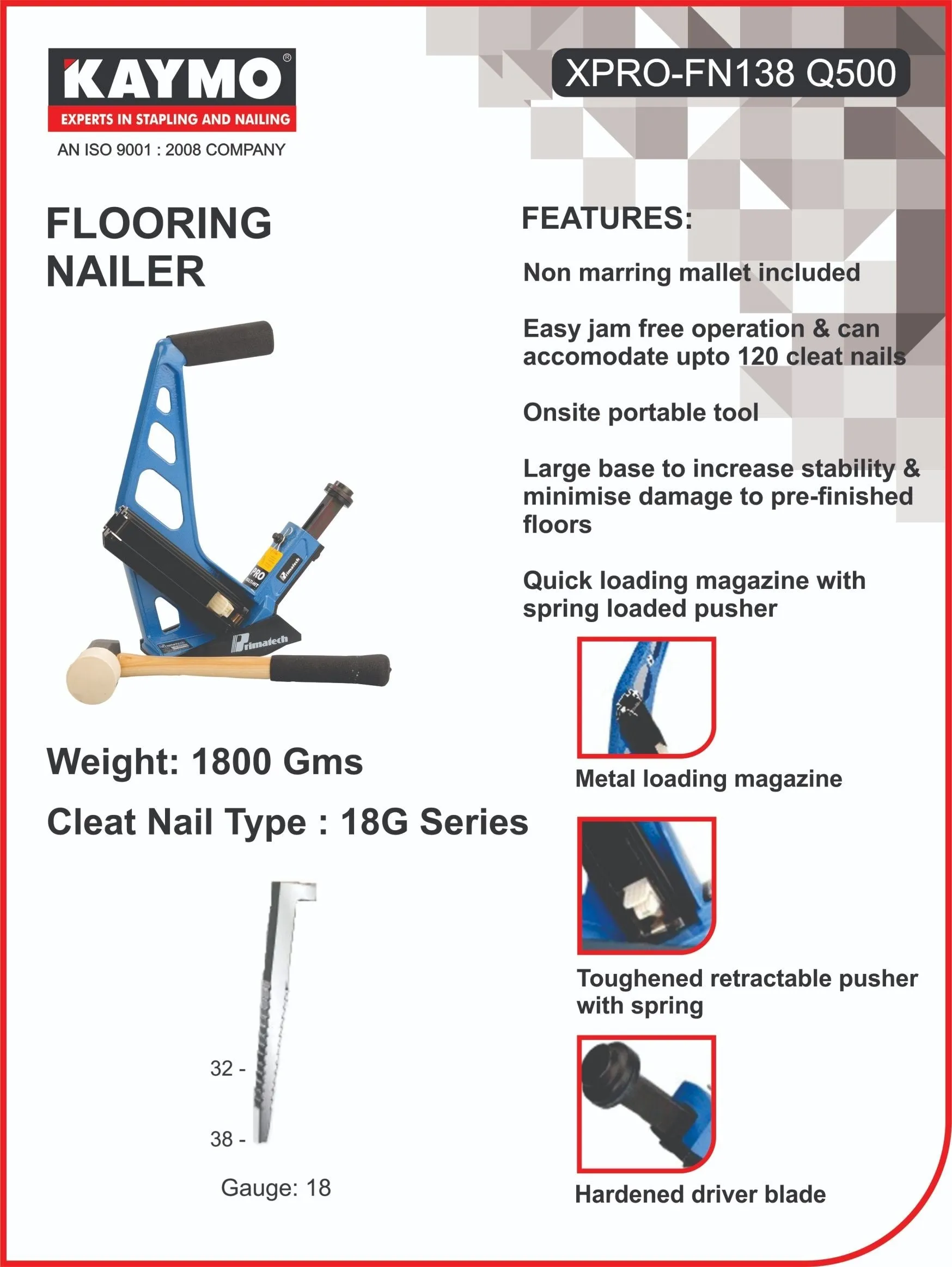

One Sheeter
Application
| To join top layer tongue & groove strips to the wooden runner |
