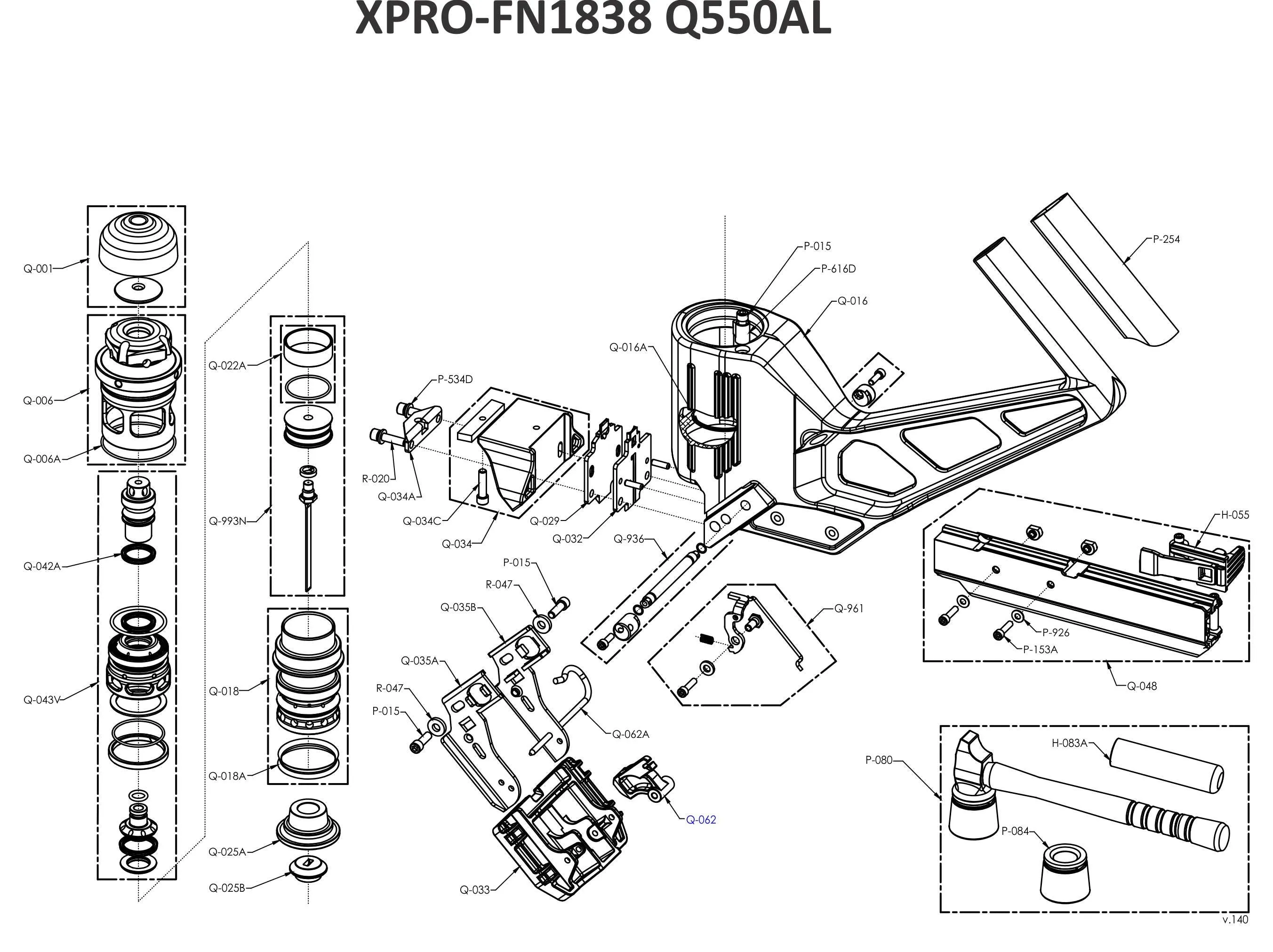

Blow Up
Spares

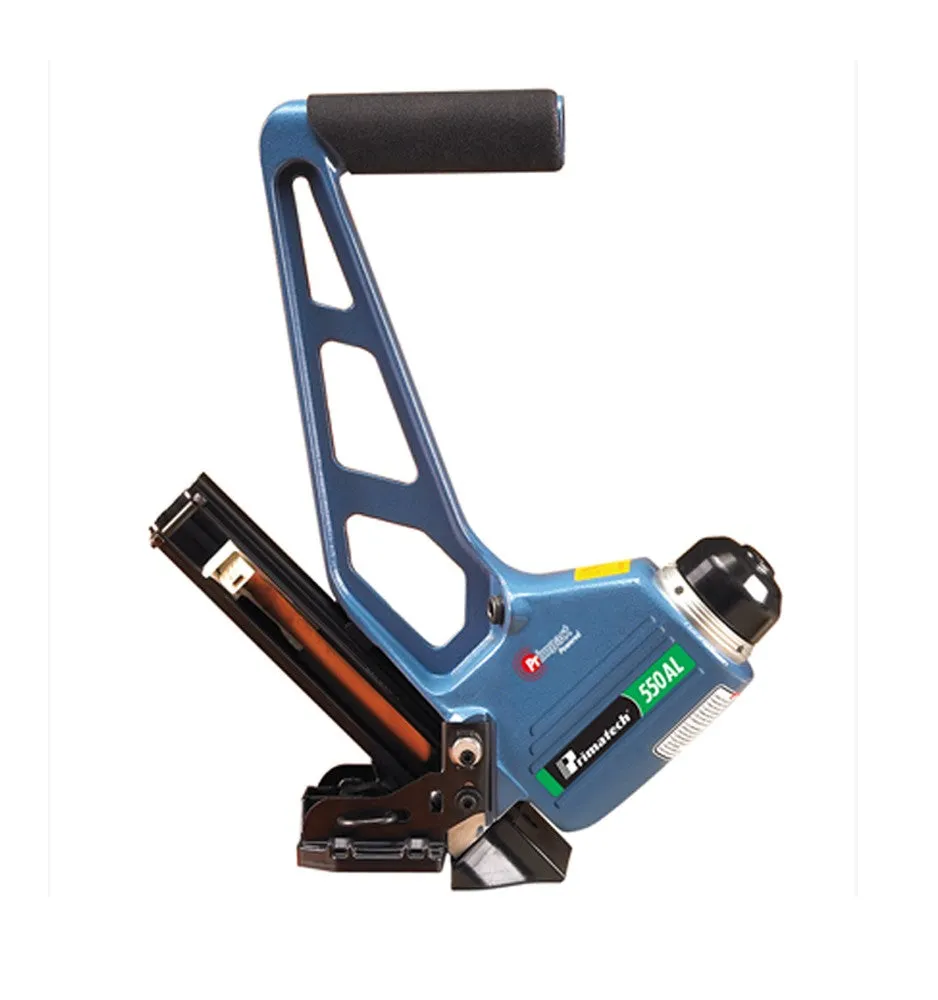

| TOOL NAME: | XPRO-FN1838 Q550AL | REV.1ST APRIL 2022 | |||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | A-866C | Connecting stem | 33 | Q-036 | Cam axle | ||||
| 2 | H-055 | Pusher assembly | 34 | Q-036A | Left cam | ||||
| 3 | H-055C | Pusher assembly | 35 | Q-036B | Right cam | ||||
| 4 | H-083A | Mallet grip | 36 | Q-039 | Gate | ||||
| 5 | H-084 | Head cap (for all mallets) | 37 | Q-042 | Actuator | ||||
| 6 | P-080 | Mallet | 38 | Q-042A | Seal | ||||
| 7 | P-084 | Inactive | 39 | Q-043 | Valve | ||||
| 8 | P-254 | Handle grip | 40 | Q-143V | Valve assembly | ||||
| 9 | P-562 | Safety contact | 41 | Q-044 | Actuator cap | ||||
| 10 | P-616D | Head lock | 42 | Q-046 | Slider assembly | ||||
| 11 | P-622C | Lock washer | 43 | Q-048 | "L" nail magazine | ||||
| 12 | Q-001 | Head cap | 44 | Q-049 | "L" nail magazine | ||||
| 13 | Q-001A | Head disk | 45 | Q-061 | Safety | ||||
| 14 | Q-006 | Head body | 46 | Q-061B | Connecting stem | ||||
| 15 | Q-006A | o-ring | 47 | Q-061D | Spring | ||||
| 16 | Q-016 | Main body | 48 | Q-062 | Safety contact | ||||
| 17 | Q-016A | o-ring | 49 | Q-062A | Locking rod | ||||
| 18 | Q-018 | Main cylinder | 50 | Q-106 | Head body | ||||
| 19 | Q-018A | Band-valve | 51 | Q-116 | Main body | ||||
| 20 | Q-022L | Piston | 52 | Q-118 | Main cylinder | ||||
| 21 | Q-022A | Wear ring | 53 | Q-118B | o-ring | ||||
| 22 | Q-022B | o-ring | 54 | Q-118C | o-ring | ||||
| 23 | Q-023 | Driving blade | Q-993N | 55 | Q-118D | o-ring | |||
| 24 | Q-025A | Bumper | 56 | Q-125A | Bumper | ||||
| 25 | Q-025B | Seal bushing | 57 | Q-153 | Combo magazine | ||||
| 26 | Q-029 | Foot | 58 | Q-936 | Axle & cam kit | ||||
| 27 | Q-032 | Gate | 59 | Q-961 | Complete safety kit | ||||
| 28 | Q-033 | Plastic base | 60 | Q-993C | Overhaul kit | ||||
| 29 | Q-034 | Resting block | 61 | Q-993M | Maintenance kit | ||||
| 30 | Q-034A | Bracket | 62 | Q-993N | Piston assembly | ||||
| 31 | Q-035A | Left bracket | 63 | Q-993R | Rebuild kit | ||||
| 32 | Q-035B | Right brachet |

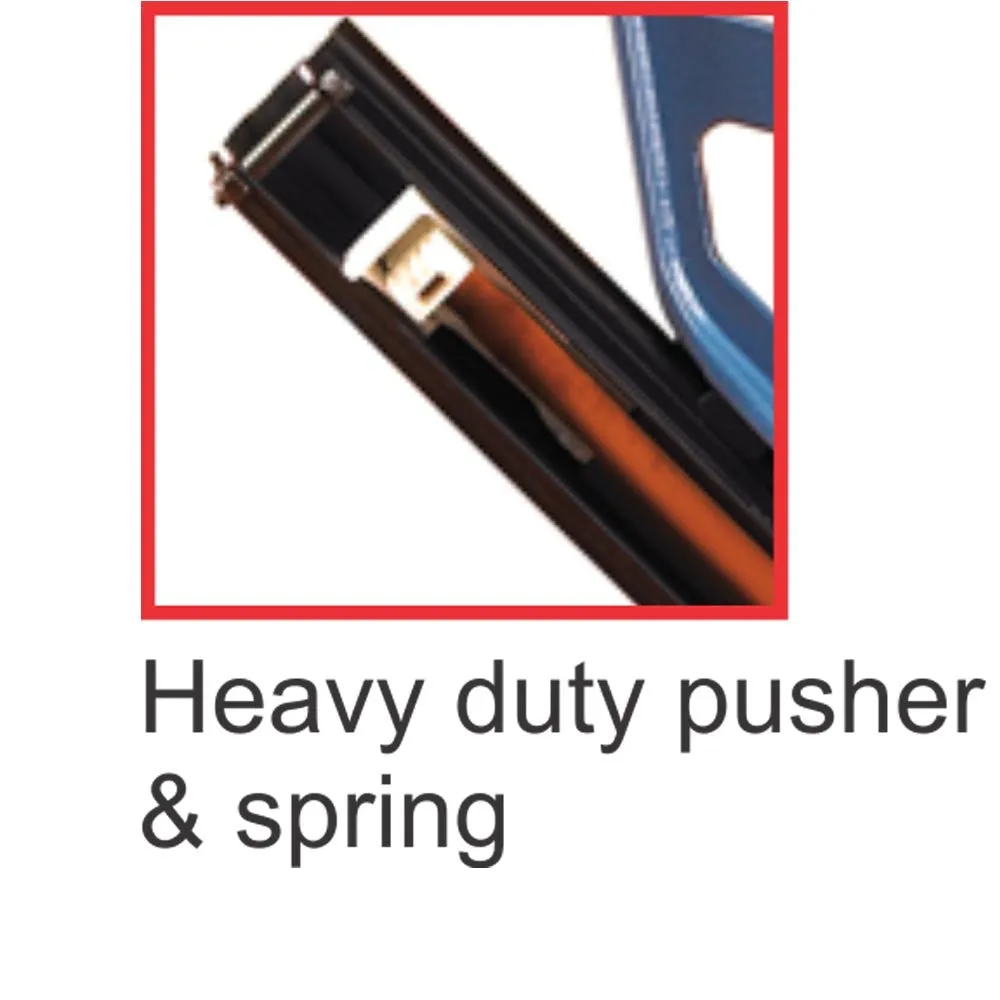

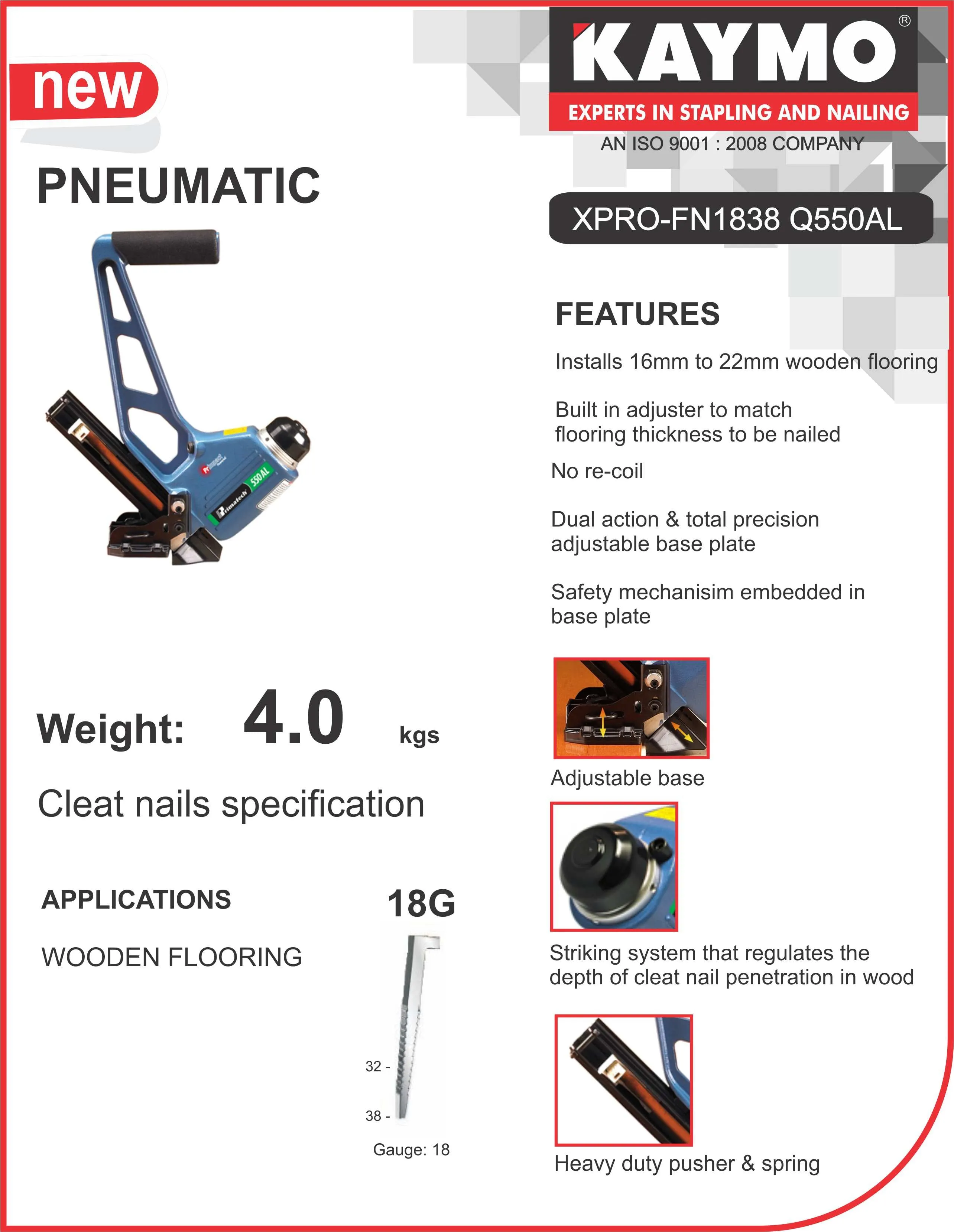

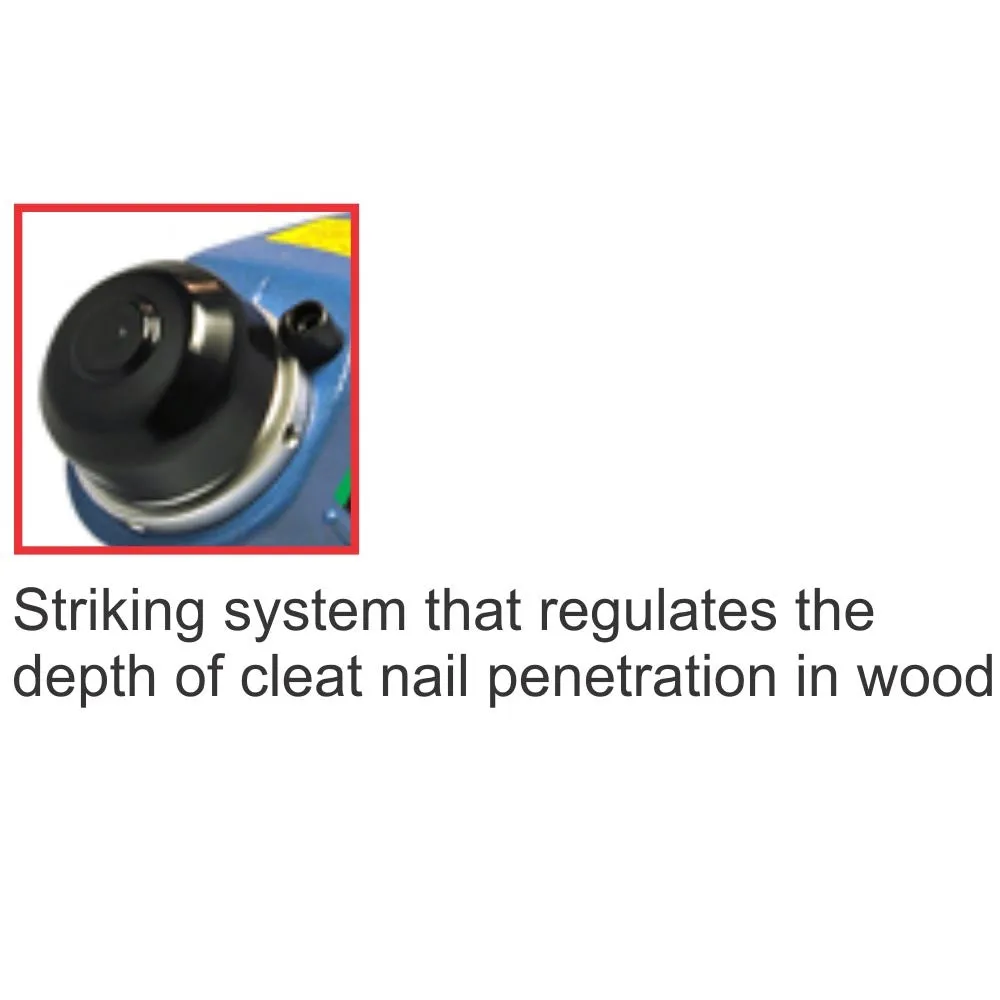

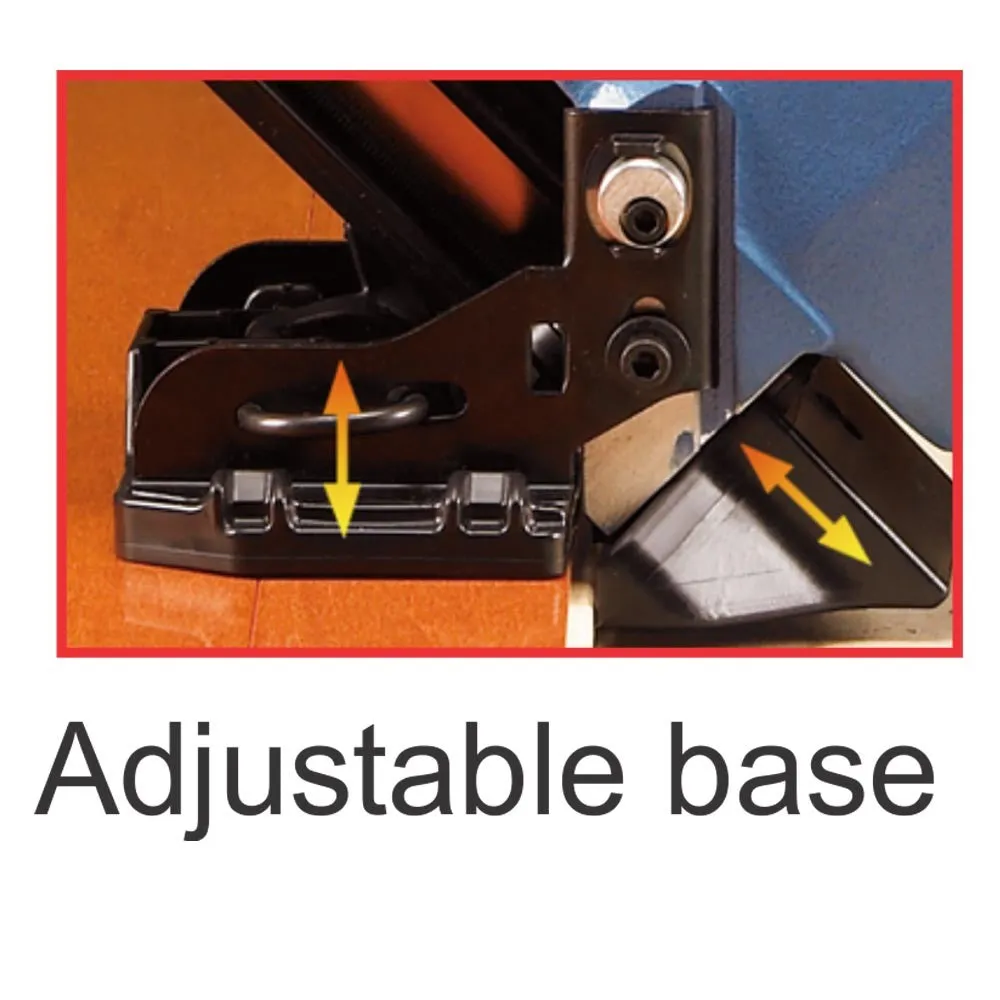

One Sheeter
Application
| To join top layer tongue & groove strips to the wooden runner |
